View In:   ArcGIS Online Map Viewer

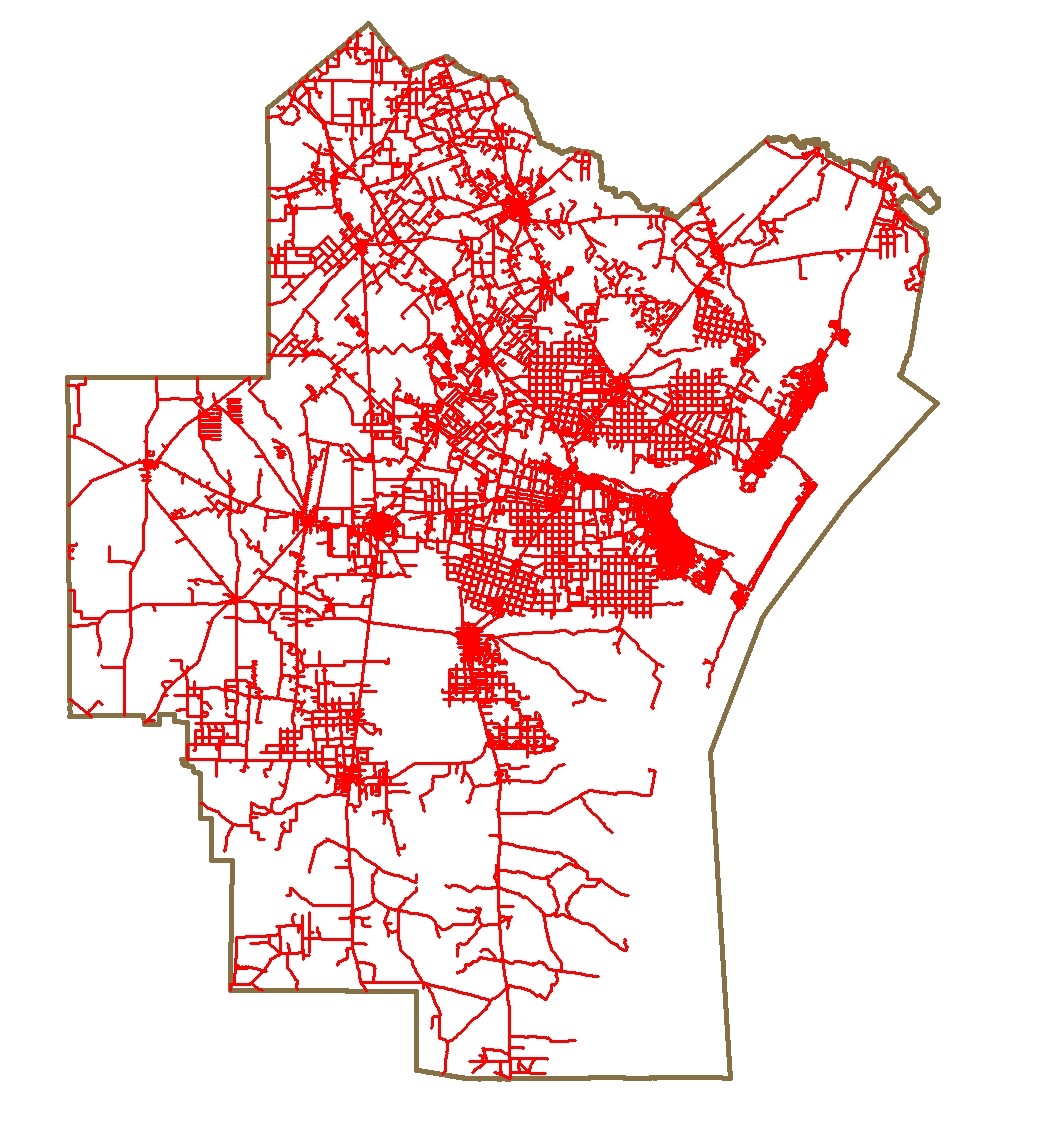

Name: RoadCenterlines

Display Field: st_name

Type: Feature Layer

Geometry Type: esriGeometryPolyline

Description: This layer has road centerline lines with NENA/CSEC based attribute fields and is updated as changes or corrections are needed.

Service Item Id: 62f4852772ac4396b2adf6c07b3f234a

Copyright Text: CBCOG GIS staff, County Addressing Agents.

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports ValidateSQL: true

Supports Calculate: true

Supports Datum Transformation: true

Extent:

XMin: -1.08975268085E7
YMin: 3226490.5011
XMax: -1.08153217158E7
YMax: 3271290.407900002
Spatial Reference: 102100  (3857)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSLSSolid
Color: [135, 62, 44, 255]
Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: true
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: false
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: true

HasM: true

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field:

Fields:

• objectid ( type: esriFieldTypeOID, alias: objectid, editable: false, nullable: false, defaultValue: null, modelName: objectid )
• discrpagid ( type: esriFieldTypeString, alias: DiscrpAgID, editable: true, nullable: true, length: 100, defaultValue: null, modelName: discrpagid )
• dateupdate ( type: esriFieldTypeDate, alias: DateUpdate, editable: true, nullable: true, length: 8, defaultValue: null, modelName: dateupdate )
• effective ( type: esriFieldTypeDate, alias: Effective, editable: true, nullable: true, length: 8, defaultValue: null, modelName: effective )
• expire ( type: esriFieldTypeDate, alias: Expire, editable: true, nullable: true, length: 8, defaultValue: null, modelName: expire )
• coguid ( type: esriFieldTypeString, alias: COGUID, editable: true, nullable: true, length: 254, defaultValue: null, modelName: coguid )
• nguid ( type: esriFieldTypeString, alias: NGUID, editable: true, nullable: true, length: 254, defaultValue: null, modelName: nguid )
• st_premod ( type: esriFieldTypeString, alias: St_PreMod, editable: true, nullable: true, length: 15, defaultValue: null, modelName: st_premod )
• st_predir ( type: esriFieldTypeString, alias: St_PreDir, editable: true, nullable: true, length: 10, defaultValue: null, modelName: st_predir )
• st_pretyp ( type: esriFieldTypeString, alias: St_PreTyp, editable: true, nullable: true, length: 50, defaultValue: null, modelName: st_pretyp )
• st_presep ( type: esriFieldTypeString, alias: St_PreSep, editable: true, nullable: true, length: 20, defaultValue: null, modelName: st_presep )
• st_name ( type: esriFieldTypeString, alias: St_Name, editable: true, nullable: true, length: 254, defaultValue: null, modelName: st_name )
• st_postyp ( type: esriFieldTypeString, alias: St_PosTyp, editable: true, nullable: true, length: 50, defaultValue: null, modelName: st_postyp )
• st_posdir ( type: esriFieldTypeString, alias: St_PosDir, editable: true, nullable: true, length: 10, defaultValue: null, modelName: st_posdir )
• st_posmod ( type: esriFieldTypeString, alias: St_PosMod, editable: true, nullable: true, length: 25, defaultValue: null, modelName: st_posmod )
• lst_predir ( type: esriFieldTypeString, alias: LSt_PreDir, editable: true, nullable: true, length: 2, defaultValue: null, modelName: lst_predir )
• lst_name ( type: esriFieldTypeString, alias: LSt_Name, editable: true, nullable: true, length: 75, defaultValue: null, modelName: lst_name )
• lst_typ ( type: esriFieldTypeString, alias: LSt_Typ, editable: true, nullable: true, length: 4, defaultValue: null, modelName: lst_typ )
• lstposdir ( type: esriFieldTypeString, alias: LStPosDir, editable: true, nullable: true, length: 2, defaultValue: null, modelName: lstposdir )
• adnumpre_l ( type: esriFieldTypeString, alias: AdNumPre_L, editable: true, nullable: true, length: 15, defaultValue: null, modelName: adnumpre_l )
• adnumpre_r ( type: esriFieldTypeString, alias: AdNumPre_R, editable: true, nullable: true, length: 15, defaultValue: null, modelName: adnumpre_r )
• fromaddr_l ( type: esriFieldTypeInteger, alias: FromAddr_L, editable: true, nullable: true, defaultValue: null, modelName: fromaddr_l )
• toaddr_l ( type: esriFieldTypeInteger, alias: ToAddr_L, editable: true, nullable: true, defaultValue: null, modelName: toaddr_l )
• fromaddr_r ( type: esriFieldTypeInteger, alias: FromAddr_R, editable: true, nullable: true, defaultValue: null, modelName: fromaddr_r )
• toaddr_r ( type: esriFieldTypeInteger, alias: ToAddr_R, editable: true, nullable: true, defaultValue: null, modelName: toaddr_r )
• parity_l ( type: esriFieldTypeString, alias: Parity_L, editable: true, nullable: true, length: 1, defaultValue: null, modelName: parity_l )
• parity_r ( type: esriFieldTypeString, alias: Parity_R, editable: true, nullable: true, length: 1, defaultValue: null, modelName: parity_r )
• country_l ( type: esriFieldTypeString, alias: Country_L, editable: true, nullable: true, length: 2, defaultValue: null, modelName: country_l )
• country_r ( type: esriFieldTypeString, alias: Country_R, editable: true, nullable: true, length: 2, defaultValue: null, modelName: country_r )
• state_l ( type: esriFieldTypeString, alias: State_L, editable: true, nullable: true, length: 2, defaultValue: null, modelName: state_l )
• state_r ( type: esriFieldTypeString, alias: State_R, editable: true, nullable: true, length: 2, defaultValue: null, modelName: state_r )
• county_l ( type: esriFieldTypeString, alias: County_L, editable: true, nullable: true, length: 100, defaultValue: null, modelName: county_l )
• county_r ( type: esriFieldTypeString, alias: County_R, editable: true, nullable: true, length: 100, defaultValue: null, modelName: county_r )
• incmuni_l ( type: esriFieldTypeString, alias: IncMuni_L, editable: true, nullable: true, length: 100, defaultValue: null, modelName: incmuni_l )
• incmuni_r ( type: esriFieldTypeString, alias: IncMuni_R, editable: true, nullable: true, length: 100, defaultValue: null, modelName: incmuni_r )
• uninccom_l ( type: esriFieldTypeString, alias: UnincCom_L, editable: true, nullable: true, length: 100, defaultValue: null, modelName: uninccom_l )
• uninccom_r ( type: esriFieldTypeString, alias: UnincCom_R, editable: true, nullable: true, length: 100, defaultValue: null, modelName: uninccom_r )
• nbrhdcom_l ( type: esriFieldTypeString, alias: NbrhdCom_L, editable: true, nullable: true, length: 100, defaultValue: null, modelName: nbrhdcom_l )
• nbrhdcom_r ( type: esriFieldTypeString, alias: NbrhdCom_R, editable: true, nullable: true, length: 100, defaultValue: null, modelName: nbrhdcom_r )
• postcomm_l ( type: esriFieldTypeString, alias: PostComm_L, editable: true, nullable: true, length: 40, defaultValue: null, modelName: postcomm_l )
• postcomm_r ( type: esriFieldTypeString, alias: PostComm_R, editable: true, nullable: true, length: 40, defaultValue: null, modelName: postcomm_r )
• postcode_l ( type: esriFieldTypeString, alias: PostCode_L, editable: true, nullable: true, length: 7, defaultValue: null, modelName: postcode_l )
• postcode_r ( type: esriFieldTypeString, alias: PostCode_R, editable: true, nullable: true, length: 7, defaultValue: null, modelName: postcode_r )
• esn_l ( type: esriFieldTypeString, alias: ESN_L, editable: true, nullable: true, length: 5, defaultValue: null, modelName: esn_l )
• esn_r ( type: esriFieldTypeString, alias: ESN_R, editable: true, nullable: true, length: 5, defaultValue: null, modelName: esn_r )
• msagcomm_l ( type: esriFieldTypeString, alias: MSAGComm_L, editable: true, nullable: true, length: 30, defaultValue: null, modelName: msagcomm_l )
• msagcomm_r ( type: esriFieldTypeString, alias: MSAGComm_R, editable: true, nullable: true, length: 30, defaultValue: null, modelName: msagcomm_r )
• entity_l ( type: esriFieldTypeString, alias: Entity_L, editable: true, nullable: true, length: 4, defaultValue: null, modelName: entity_l )
• entity_r ( type: esriFieldTypeString, alias: Entity_R, editable: true, nullable: true, length: 4, defaultValue: null, modelName: entity_r )
• exchange_l ( type: esriFieldTypeString, alias: Exchange_L, editable: true, nullable: true, length: 4, defaultValue: null, modelName: exchange_l )
• exchange_r ( type: esriFieldTypeString, alias: Exchange_R, editable: true, nullable: true, length: 4, defaultValue: null, modelName: exchange_r )
• speedlimit ( type: esriFieldTypeInteger, alias: SpeedLimit, editable: true, nullable: true, defaultValue: null, modelName: speedlimit )
• oneway ( type: esriFieldTypeString, alias: OneWay, editable: true, nullable: true, length: 2, defaultValue: null, modelName: oneway )
• roadclass ( type: esriFieldTypeString, alias: RoadClass, editable: true, nullable: true, length: 24, defaultValue: null, modelName: roadclass )
• gc_excepti ( type: esriFieldTypeString, alias: GC_Excepti, editable: true, nullable: true, length: 75, defaultValue: null, modelName: gc_excepti )
• created_us ( type: esriFieldTypeString, alias: created_us, editable: true, nullable: true, length: 254, defaultValue: null, modelName: created_us )
• created_da ( type: esriFieldTypeDate, alias: created_da, editable: true, nullable: true, length: 8, defaultValue: null, modelName: created_da )
• last_edite ( type: esriFieldTypeString, alias: last_edite, editable: true, nullable: true, length: 254, defaultValue: null, modelName: last_edite )
• last_edi_1 ( type: esriFieldTypeDate, alias: last_edi_1, editable: true, nullable: true, length: 8, defaultValue: null, modelName: last_edi_1 )
• pom ( type: esriFieldTypeString, alias: POM, editable: true, nullable: true, length: 12, defaultValue: null, modelName: pom )
• rd ( type: esriFieldTypeString, alias: RD, editable: true, nullable: true, length: 60, defaultValue: null, modelName: rd )
• abbr_stree ( type: esriFieldTypeString, alias: Abbr_Stree, editable: true, nullable: true, length: 50, defaultValue: null, modelName: abbr_stree )
• creation_d ( type: esriFieldTypeDate, alias: CREATION_D, editable: true, nullable: true, length: 8, defaultValue: null, modelName: creation_d )
• creation_u ( type: esriFieldTypeString, alias: CREATION_U, editable: true, nullable: true, length: 50, defaultValue: null, modelName: creation_u )
• modify_dat ( type: esriFieldTypeDate, alias: MODIFY_DAT, editable: true, nullable: true, length: 8, defaultValue: null, modelName: modify_dat )
• modify_use ( type: esriFieldTypeString, alias: MODIFY_USE, editable: true, nullable: true, length: 50, defaultValue: null, modelName: modify_use )
• no_msag ( type: esriFieldTypeInteger, alias: NO_MSAG, editable: true, nullable: true, defaultValue: null, modelName: no_msag )
• c1_excepti ( type: esriFieldTypeInteger, alias: C1_EXCEPTI, editable: true, nullable: true, defaultValue: null, modelName: c1_excepti )
• sourceofda ( type: esriFieldTypeString, alias: SourceofDa, editable: true, nullable: true, length: 75, defaultValue: null, modelName: sourceofda )
• lstposmod ( type: esriFieldTypeString, alias: LStPosMod, editable: true, nullable: true, length: 2, defaultValue: null, modelName: lstposmod )
• evacroute ( type: esriFieldTypeString, alias: EvacRoute, editable: true, nullable: true, length: 254, defaultValue: null, modelName: evacroute )
• distance ( type: esriFieldTypeDouble, alias: Distance, editable: true, nullable: true, defaultValue: null, modelName: distance )
• shape_leng ( type: esriFieldTypeDouble, alias: Shape_Leng, editable: true, nullable: true, defaultValue: null, modelName: shape_leng )
• jurisdicti ( type: esriFieldTypeString, alias: Jurisdicti, editable: true, nullable: true, length: 254, defaultValue: null, modelName: jurisdicti )
• Shape__Length ( type: esriFieldTypeDouble, alias: st_length(shape), editable: false, nullable: true, defaultValue: null, modelName: st_length(shape), required: true )

Templates:

• Name: RoadCenterlines
  Description:
  Prototype:
  jurisdicti: null
  shape_leng: null
  discrpagid: null
  dateupdate: null
  effective: null
  expire: null
  coguid: null
  nguid: null
  st_premod: null
  st_predir: null
  st_pretyp: null
  st_presep: null
  st_name: null
  st_postyp: null
  st_posdir: null
  st_posmod: null
  lst_predir: null
  lst_name: null
  lst_typ: null
  lstposdir: null
  adnumpre_l: null
  adnumpre_r: null
  fromaddr_l: null
  toaddr_l: null
  fromaddr_r: null
  toaddr_r: null
  parity_l: null
  parity_r: null
  country_l: null
  country_r: null
  state_l: null
  state_r: null
  county_l: null
  county_r: null
  incmuni_l: null
  incmuni_r: null
  uninccom_l: null
  uninccom_r: null
  nbrhdcom_l: null
  nbrhdcom_r: null
  postcomm_l: null
  postcomm_r: null
  postcode_l: null
  postcode_r: null
  esn_l: null
  esn_r: null
  msagcomm_l: null
  msagcomm_r: null
  entity_l: null
  entity_r: null
  exchange_l: null
  exchange_r: null
  speedlimit: null
  oneway: null
  roadclass: null
  gc_excepti: null
  created_us: null
  created_da: null
  last_edite: null
  last_edi_1: null
  pom: null
  rd: null
  abbr_stree: null
  creation_d: null
  creation_u: null
  modify_dat: null
  modify_use: null
  no_msag: null
  c1_excepti: null
  sourceofda: null
  lstposmod: null
  evacroute: null
  distance: null

  Drawing Tool: esriFeatureEditToolLine

Capabilities: Query,Create,Update,Delete,Uploads,Editing

Sync Can Return Changes: false

Is Data Versioned: false

Supports Rollback On Failure: true

Supports ApplyEdits With Global Ids: false

Supports Query With Historic Moment: false

Supports Coordinates Quantization: true

Child Resources:   Field Groups   Contingent Values

Supported Operations:   Query   Query Analytic   Apply Edits   Add Features   Update Features   Delete Features   Calculate   Validate SQL   Generate Renderer   Return Updates   Iteminfo   Thumbnail   Metadata   Update Metadata
